All GFAB Alloy boat trailers, are designed & built specifically to suit your boat’s make and model, taking into account any features that make your boat unique.
Our large boat trailers are either tandem or triple axled and rated to 4500kg and they are best suited for boats between 7.5-9m
With a rating of up to 4500kg, these trailers come fitted with an electric hydraulic braking system which is either connected to the vehicle through a hardwired system if fitted, or with a Credo Unit that has wireless in-cab control for total control over your trailer. These trailers also come fitted with a 70mm coupling as standard.
GFAB’s boat trailers are all fabricated with care by our team of legends which gives GFAB trailers their strength and good looks.
We know that reliability is essential when owning a trailer, which is why we choose to only use the New Zealand designed UniHub system on all of our marine trailers. UniHubs are a fully enclosed bearing system that means worrying about re-greasing your bearings is a thing of the past.
Specifications
- Chassis is made from C Sections of 6mm Marine Grade, High Tensile Aluminium
- 13 Inch Black Alloys with high capacity tyres
- Keel rollers down the centre of the trailer to support most of the boat’s weight
- Plastic bunks on trailers for alloy boats - Roller bunks for fibreglass or timber boats

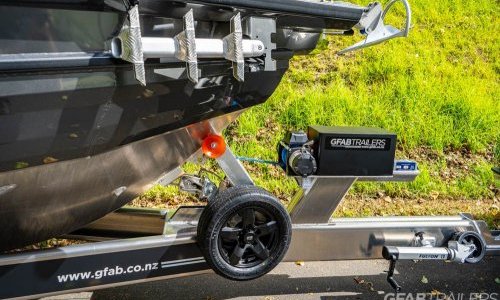

- Electric winch
- Fitted for hardwired in-cab controlled braking
- Spare wheel and mount
Optional Upgrades

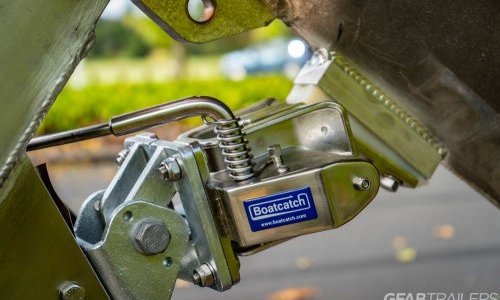

- Boatcatch - great for independant launching and retrieving
- Walkboards - available in full and half lengths, these non-slip boards run along the centre of the trailer so you can keep your feet dry on the boat ramp
- 14” Wheels - for extra ground clearance if you travel a lot on rough roads
- Credo wireless in-cab brake control - allows in cab brake control on any suitable tow vehicle
Dimensions:
Dimensions vary between trailers so the ranges below are only a guide.
Length: 8-12m
Width: 2.5m
Weight: 850-980kg
Lead times:
Our typical lead times are between 8-12 weeks.
